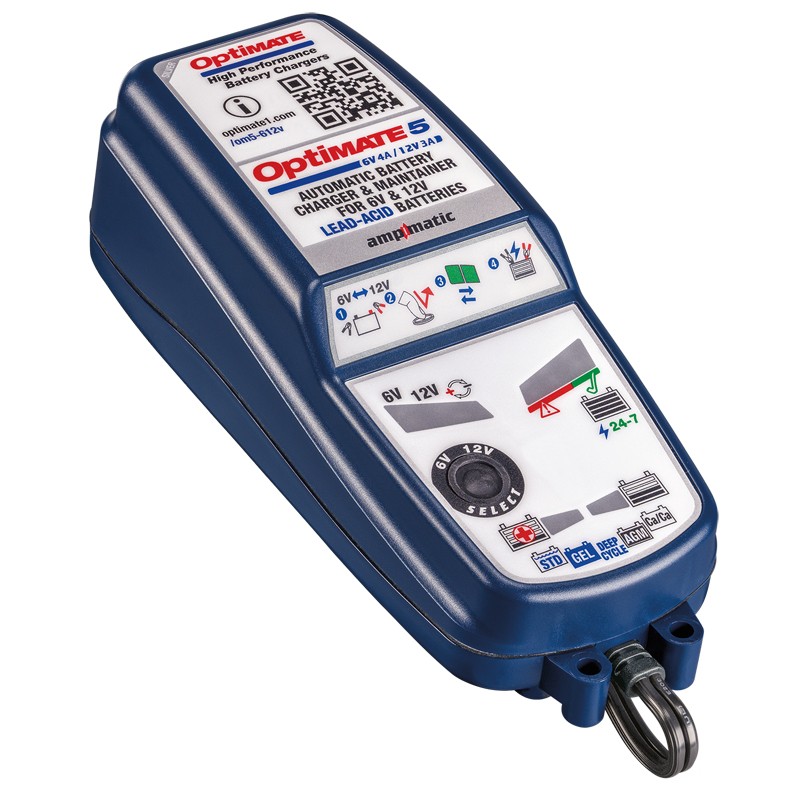

SILVER series: 8-stage 6V 4A / 12V 3A sealed battery-preserving charger & maintainer The OptiMate 5 6V/12V is the smarter charger for all 6V and 12V lead-acid batteries – ideal for deep-cycle batteries!
Select the correct charging voltage for your 6V or 12V lead-acid battery – your selection remains in the memory even if the AC power fails.
Fully automatic multi-stage programme safely brings the battery to full charge – simply connect it to the battery and the OptiMate 5 6V/12V does the rest; no supervision required!
For 6V and 12V lead-acid (Pb) batteries, including STD (with filler caps), AGM, GEL (sealed VRLA), deep-cycle and SLI.
IDEAL FOR: STD, AGM, GEL, SLI & DEEP-CYCLE 6 & 12V batteries from 3 – 120Ah (up to 160Ah for 6V).
CHARGING CURRENT: 4A (6V) / 3A (12V) (Ampmatic)
CHARGING VOLTAGE: 6V range: 0.5V – 7.2V; 12V range: 8V (0.5V*) – 14.4V *Voltage safety check. Will not charge the battery if its voltage does not match the selected voltage. The user must confirm that it is a 12V battery with low voltage > press and hold the selection button for 3 seconds to confirm > the lowest charging voltage for 12V has been reduced to 0.5V.
OPERATION: Selectable
STEPS: 8
FEATURES: RESCUES & CHARGES all 6V & 12V lead-acid batteries.
INPUT VOLTAGE: Universal (100–240V 50–60Hz), high efficiency (as specified by CEC).
DESIGN: Weatherproof housing with wall mounting, including a 6ft / 180cm AC power cable and a 6ft / 180cm charging cable with an SAE connector at the end.
RECOVERY: Starts at a low voltage of 0.5V + 2-stage desulphation recovery.
SAFE: Eliminates the risk of overcharging. Completely safe for vehicle electronics. Suppresses sparks. Safe for long-term battery maintenance. Automatic shut-off in the event of a short circuit or battery disconnection.
INCLUDES: Water-resistant battery cable and battery clip set
