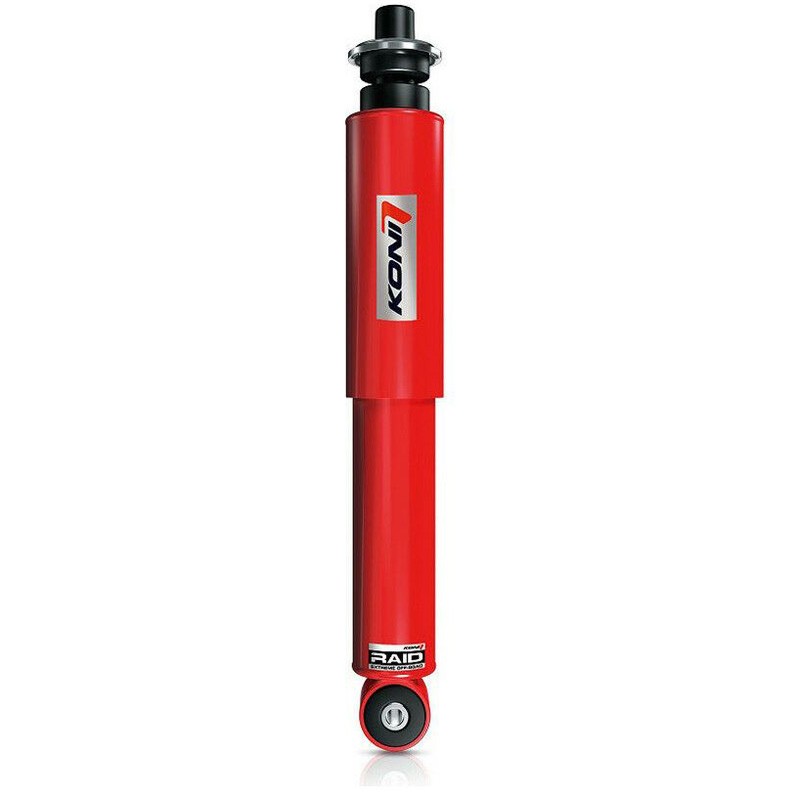

KONI HT Raid Shock absorber suitable for Toyota Hi-Lux Pickup 4WD 2005-2014 - Rear axle (90-5410SP1)

KONI HT Raid Shock absorber Toyota Hi-Lux Pickup 4WD 2005-2014 - Rear axle (90-5410SP1)

Are unpaved roads not extreme enough? KONI Heavy Track Raid is the most robust and most durable all-terrain damper of its kind. KONI Raid dampers have been specially developed and tested at great length to withstand the most extreme Off-Road challenges.

KONI has used its many years of experience in developing the Heavy Duty dampers to develop a damper specifically aimed at the extreme Off-Roader. This resulted in the KONI Heavy Track Raid dampers. These dampers have a robust over-dimensioned construction and utilize oversized dimensions and components. The dampers are welded all around and the gaskets/seals withstand very high temperatures.

Regardless the heavy terrain conditions, the RAID dampers have already proven their excess value many times, with durability, robustness and safety being paramount.

Characteristics of the KONI Raid series:

Twin-tube technology

• Outer tube thickness of 2.5mm; damper function guaranteed in case of deformation of outer tube by impact of rocks

Reservoir tube

• Big bore (70mm)
• Oil volume has been doubled for better cooling & efficiency

Attachments

• Solid, robust attachments and made from 1 piece
• Attachments welded all around (360°)
• Special heat-resistant sealing rings

Adjustability

• Possibility to adjust the rebound forces in order to adapt your damper to your springs and / or loads

Double dynamic protection

• Rebound: progressive hydraulic rebound stop valve
• Bump: extra security in case of big compression impact

Ready made for:

Toyota Hi-Lux Pickup 4WD 2005-2014 - Rear axle - For vehicles with standard or raised suspension, Front/Rear: 0-30mm
