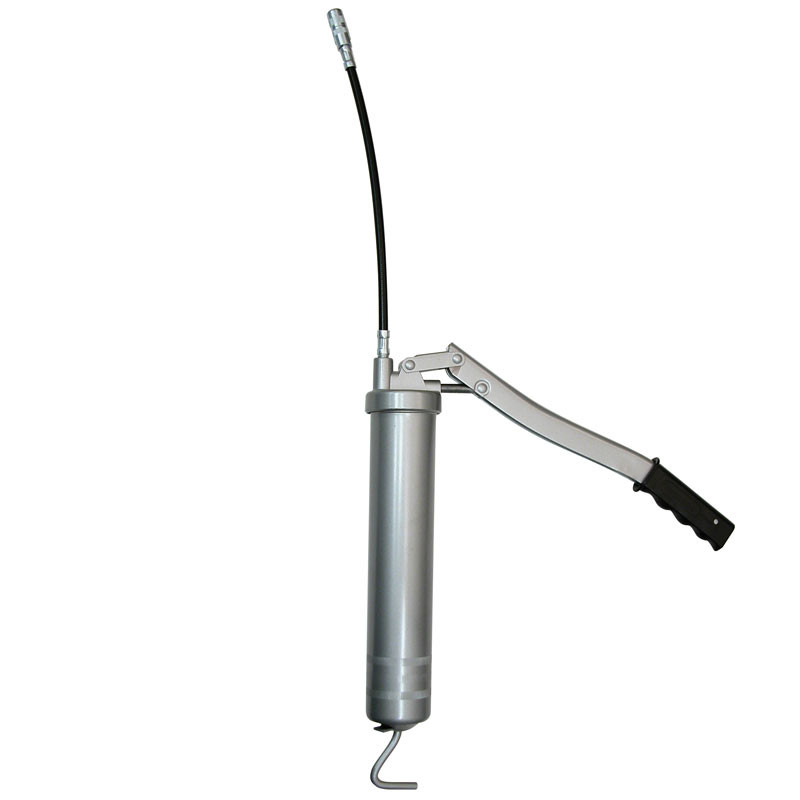

Pressol 12 633 Lever-Action Standard Grease Gun HHFP

Pressol 12 633 Lever-Action Standard Grease Gun HHFP

This manual grease gun is built for robust workshop use and is suitable for greases up to NLGI grade 2 at 20 °C. A precision pump piston with a close fit to the cylinder helps prevent false lubrication and ensures consistent performance, even after 40,000 operating cycles.

For safe use, it delivers up to 400 bar working pressure, features quick venting (half a turn of the barrel) and provides secure handling with slip-resistant grips. The zinc die-cast head (Z 410) is built for long service life. Refilling options include a 400 g grease cartridge (DIN 1284) or bulk grease; the follower piston seals tightly in both cases. TÜV certified and manufactured to DIN 1283.

Technical Data
Pressure-side connection: M10 x 1
Capacity: 500 cm³
Refilling options: 400 g grease cartridge (DIN 1284) or bulk grease
Delivery per stroke: 1.2 cm³ (at a counter-pressure of 400 bar)
Working pressure (max.): 400 bar
Burst pressure system: 850 bar
Burst pressure grease gun head: 1200 bar
Weight: 1.25 kg
Finish: Silver

Scope of supply
Reinforced hose, M10 x 1 male, 8 x 300 mm (12 656)
4-jaw coupler, M10 x 1 (12 631)
