Pressol 12 636 100 Lever-Action Industrial Grease Gun 1-HHFP black

Pressol 12 636 100 Lever-Action Industrial Grease Gun 1-HHFP black

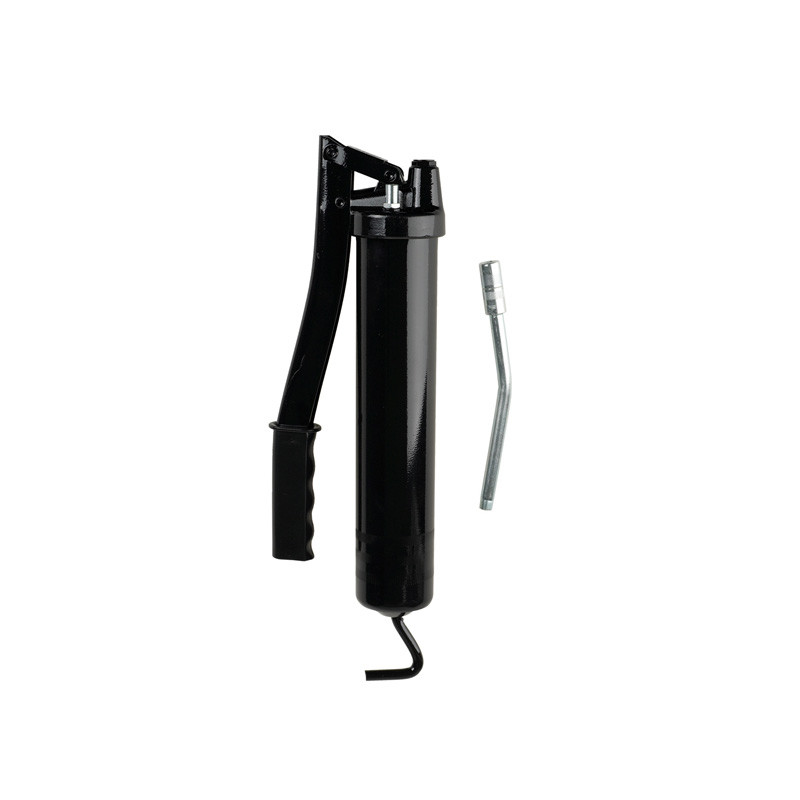

This manual industrial grease gun 1 HHFP is built for tough workshop use and is suitable for greases up to NLGI grade 2 at 20 °C. Thanks to the precision fit between the pump piston and cylinder (6 µm), false lubrication is avoided; the O-ring and ball valve reliably prevent grease backflow. Performance remains unchanged even after 40,000 operating cycles.

For flexible applications, it provides variable working pressure up to 400 bar with consistent lever force. Separate filling and venting valves in the grease gun head, plus quick venting (half a turn of the barrel), support clean operation. The follower piston seals tightly for cartridge or bulk grease and, with the flexible push rod, can also be used with damaged cartridges or cartridges that don't match standard dimensions exactly. TÜV certified and manufactured to DIN 1283.

Technical Data
Pressure-side connection (via steel adaptor): M10 x 1
Filling nipple: M10 x 1
Capacity: 500 cm³
Refilling options: 400 g grease cartridge (DIN 1284), grease filling system or loose grease (with spatula)
Delivery rate/stroke: Proportional to the manual lever operating distance, max. 1.6 cm³
Working pressure (max.): 400 bar
Burst pressure system: 850 bar
Burst pressure grease gun head: 1200 bar
Dimensions (L x W x H): 390 x 120 x 66 mm
Weight: 1.25 kg
Finish: Black

Scope of supply
Filling nipple (FN), M10 x 1 male (12 670)
Angled spout, M10 x 1, 150 mm (12 635)
4-jaw coupler, M10 x 1 (12 631)
